Tracing with Agents SDK
AI Engineering
Agents SDK integrates with OpenAI's built-in Traces dashboard found within the OpenAI Platform. In this example, we'll take a look at both the default tracing enabled by default whenever we use Agents SDK (with an OpenAI API key present), and custom tracing.
Accessing the Traces Dashboard
We should first confirm that we have access to the Traces dashboard in the OpenAI Platform. You should be able to find the dashboard like so:
TK add visual steps

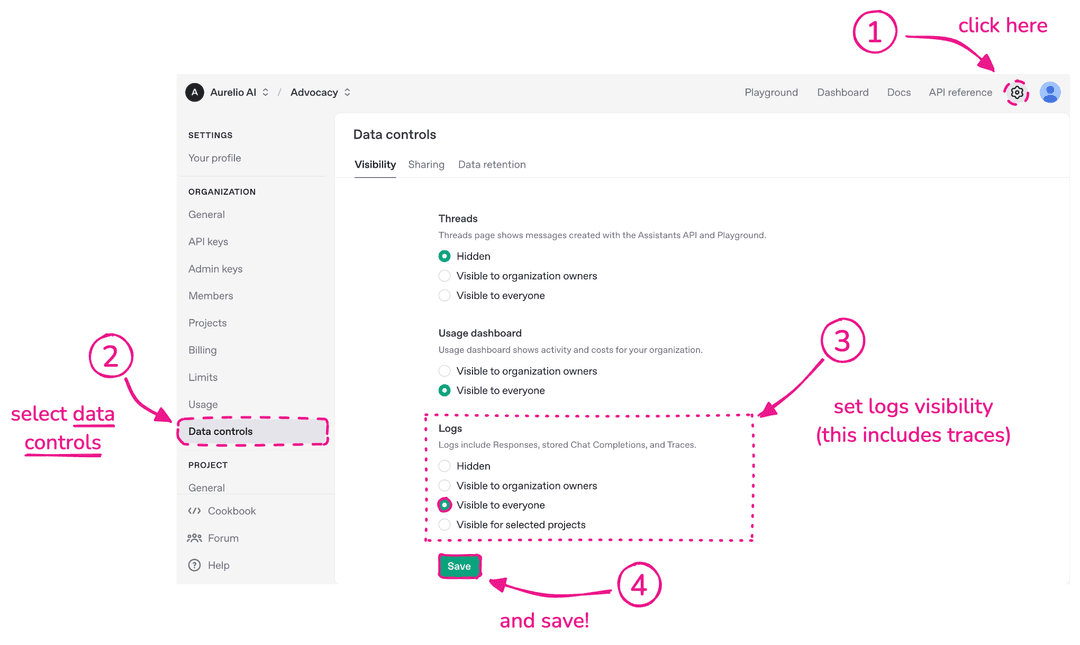

By default the traces dashboard is not visible by anyone but the organization owner. So, if you are not the organization owner or you need to provide access to other members of your organization you would do that via the Data controls setting, which can be found here:
After gaining access to the dashboard, if you have been following through with other chapters in the course you should see a list of traces already. If you don't — no problem — we'll be creating traces in the following steps of this example.
As usual, we need to set our OPENAI_API_KEY
, which we find in the OpenAI Platform.
Tracing Basic Agent Prompting
First we need to create an agent, we will use the Agent
class to create a basic agent.
In each Agent
object we have some fundamental parameters, those are:
name
: The name of the agentinstructions
: The system prompt for the agentmodel
: The model to use for the agent
The instructions
parameter is where we will pass our system prompt, this will be used to guide the behavior of the agent
When running this agent we will automatically find traces being sent to our traces dashboard.

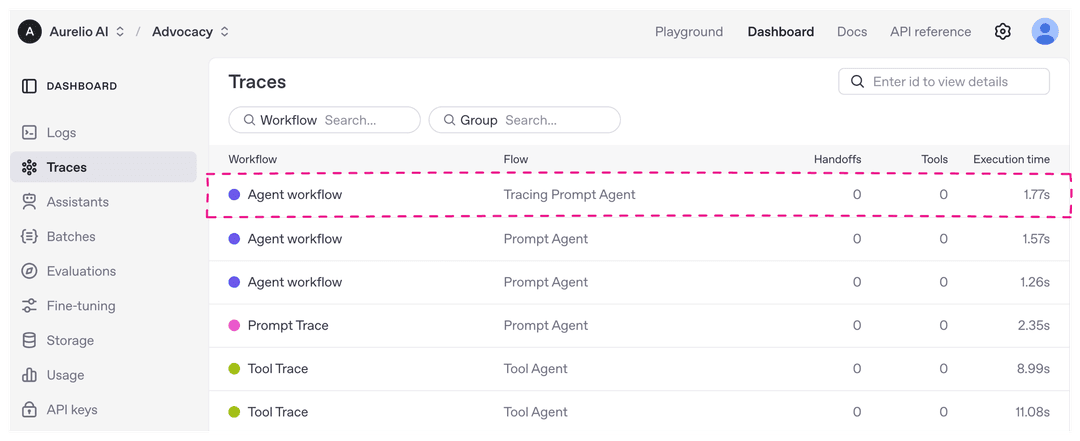

We should now see a trace in the dashboard with the default workflow name (Agents SDK uses Agent workflow
for agent runs) and the name of our agent, ie "Tracing Prompt Agent"
:
In the trace preview we can see key information such as whether any handoffs occured or tools were used, and how long the workflow took to complete.

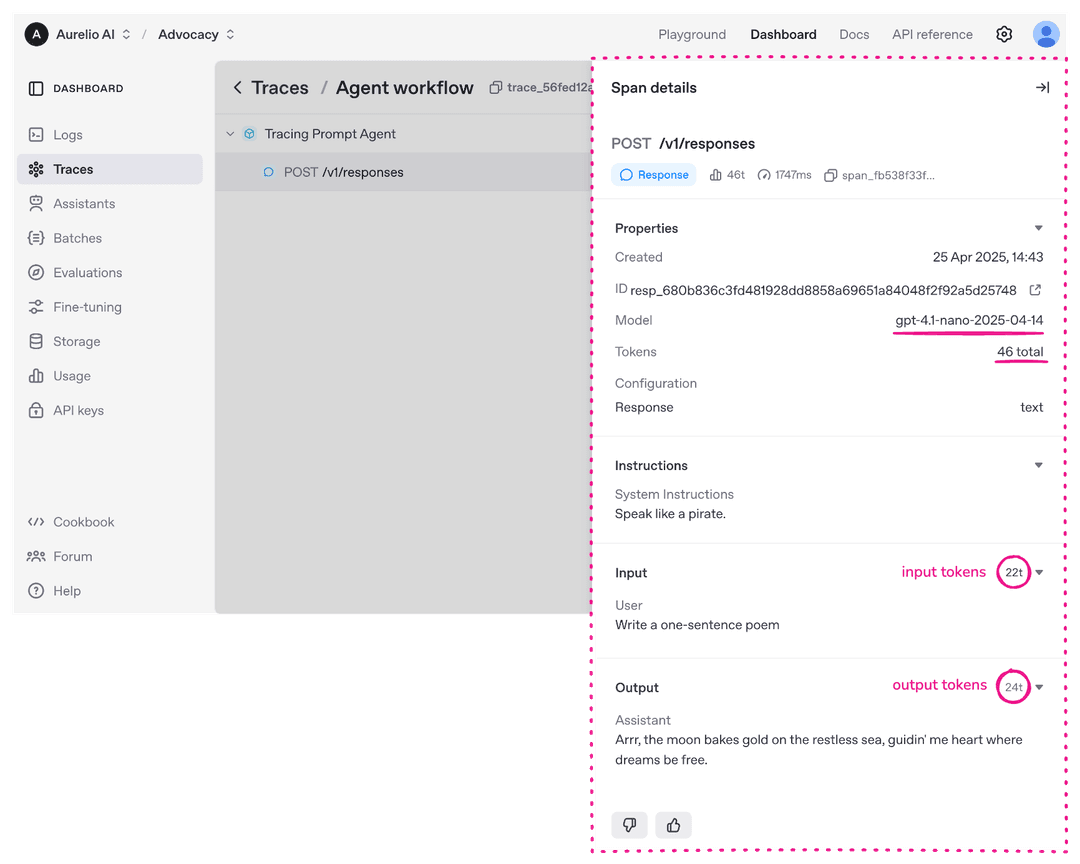

We can also click on the trace to see a breakdown of each step in our trace, ie the individual spans, and we click on one of those spans to see the span details. Including LLM information, input / outputs, and the number of tokens that we have used.
Building Custom Traces
To customize our tracing, we can use the trace
function from the Agents SDK library. With this, we can add and/or modify any defined parameters to anything ran within the context of our trace
.
There are various parameters we can set, the primary parameters are:
workflow_name
: Name given to the workflow, this will be displayed as the primary name of the trace.group_id
: ID given to a group of traces. Throughout this notebook we set this toAgents SDK Course: Tracing
so we can easily identify traces that have been generated from this notebook.trace_id
: ID of the individual trace (recommended to useutil.gen_trace_id()
if using)metadata
: Dictionary of data given with the workflow datadisabled
: If true it will not return a trace
We will try setting just the workflow_name
and group_id
.

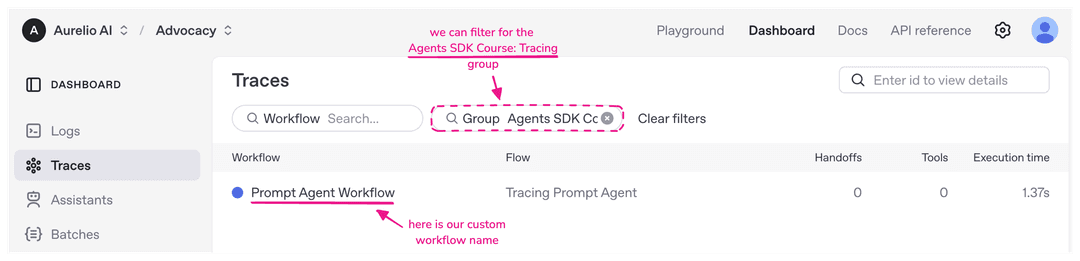

From this, we should find a new Prompt Agent Workflow trace in our dashboard. We can also search for it by entering Agents SDK Course: Tracing
in the Group search bar.
Tracing Agent Tools
Again, we need to create an agent.
In this Agent
object we have an additional parameter, this is:
tools
: The tools provided to the agent for usage.
In order to use this we need to aquire a tool to use, we can import WebSearchTool
from the agents library, this tool will allow the agent
object to search the web for results.
Let's try calling the tool agent and seeing what is traced.

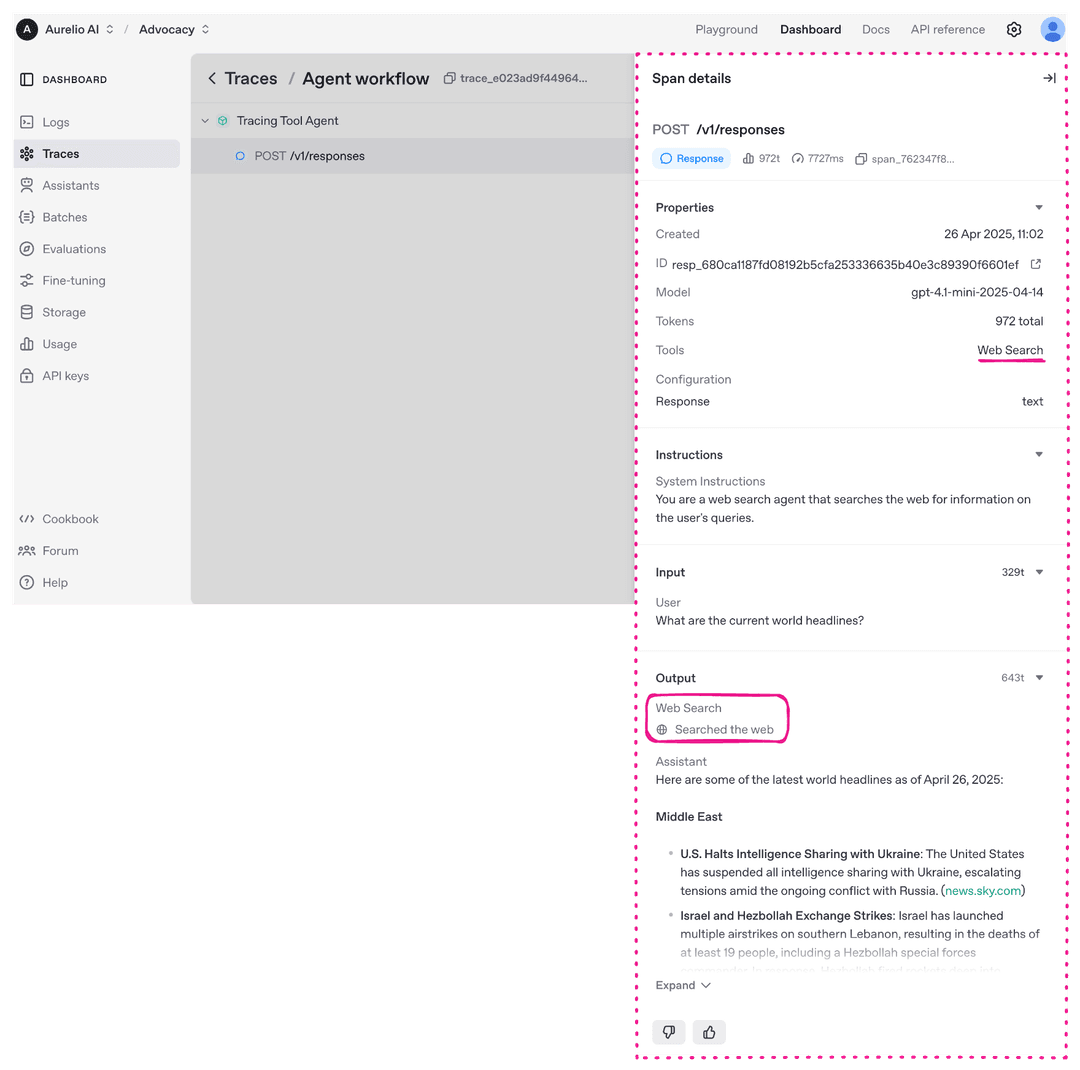

Inside our trace we'll see it automatically picked up the agent name of Tracing Tool Agent as the workflow name. Then if we click through to the span details, we'll find a similar structure but this time we also see that the web search tool was called:

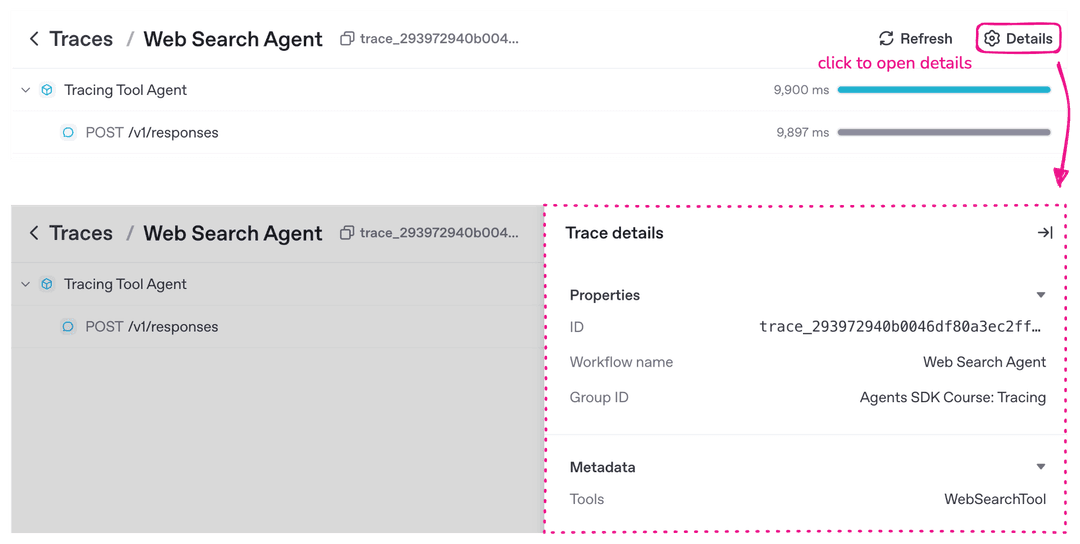

We can also set our trace metadata, which appears in the span details (by clicking the little cog icon at the top-right of the span page). Let's try adding metadata that our workflow includes a tool called WebSearchTool
.
We can find that metadata here:
That's it for this guide to OpenAI's traces via Agents SDK.
